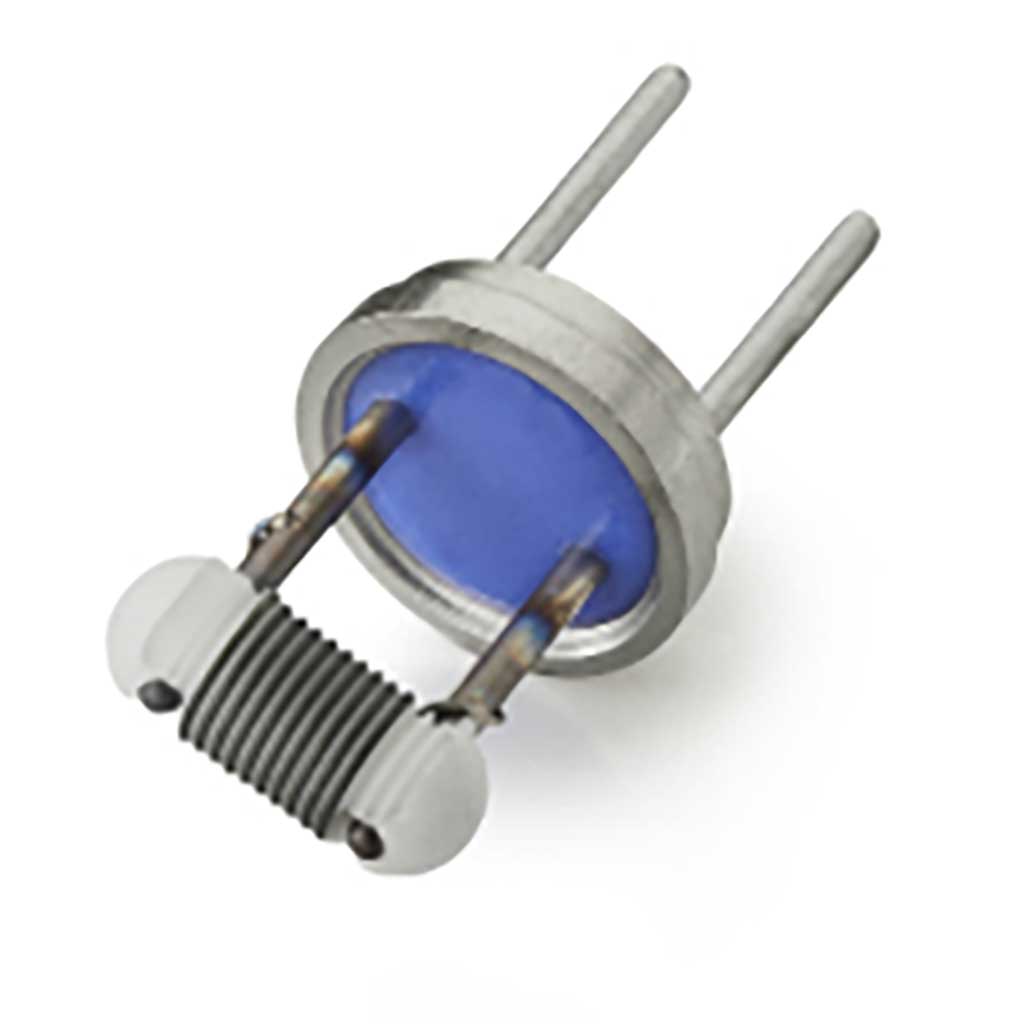

IR-14 IR Source
Steady State Infrared Source
Power, W 12
Voltage, V 4.6
Temperature, °C 950
Source Material High stability wire
The IR-14 is a thermal emitter appropriate for use in laboratory and field instrumentation due to its long life and stable properties.
- Rugged and Reliable
- Long Life, Stable Properties
- Supported, Coil Wound
- Does not require operation in a sealed atmosphere
- Can be mounted on a circuit board, alternative mounting available
To achieve increased on-axis optical power, or to target a particular wavelength, the IR-14 can be supplied with a reflector, a window or with both.
