OT-302D Display Module. Position Sensing Data Display

The OT-302D Display Module brings a new level of ease and sophistication to display and analysis of position sensing data collected from the OT-301 Position Sensing Amplifier. Utilize the module in three ways: as a standalone readout system, in tandem with Beamtrak data processing software (included), or with user-programmable routines via RS-232 communication.

Stand Alone Readout.

The OT-302D is an ideal stand alone display. The simple two-button front panel allows you to quickly set-up the OT-302D for your individual measurement applications. Press both buttons simultaneously to enter the configuration mode. Select the size of your position sensing detector, measurement units, and display update speed. Press the FAST / SLOW button to exit. The OT-302D is ready to display position data.

Beamtrak Display And Analysis Software.

Complimentary Beamtrak software makes it easy to collect, display and analyze data from the OT-302D on your IBM PC compatible computer. Featuring a full toolset of "must have" functions - from automatic data logging and history trace, to data averaging and autoscale - you'll be up and running in no time.

RS-232 Communication Control.

All OT-302D commands are available through the RS-232 port - ideal for users writing custom application-specific programs.

Address the OT-302D via the RS-232 comm port with the following settings: 9600 Baud Rate, 8 Bits, 1 Stop Bit, No Parity.

Absolute Position - mm And Inches.

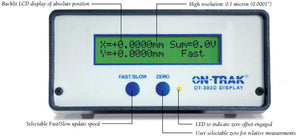

The OT-302D's microprocessor-controlled module takes analog output voltage from the position sensing amplifier and converts it into absolute position - millimeters or inches. X/Y position and SUM output is simultaneously displayed on the backlit LCD to a resolution of 0.1 μm (0.0001 inches).

Lifetime Warranty.

So reliable is the OT-302D, that On-Trak Photonics back it with a comprehensive lifetime warranty...at no additional charge.

• LCD Display of Absolute Position

• LCD Backlight

• X, Y Position and Sum Display

• Metric (mm) or English (in)

• RS-232 Interface

• Push Button Zero Offset

• Computer Controlled or Stand Alone

• Front Panel Push Button Control

• High Resolution 0.1 Micron (0.0001")
• Display Update Control 0.1 To 25.5 Second Update Speed
• Calibration Features for all Size Detectors
• Fast/Slow Averaging
