SG01Q-5 Broadband SiC based UV quadrant Photodiode
The SG01Q-5 is a broadband SiC based UV quadrant photodiode that provides the unique property of extreme radiation hardness, near-perfect visible blindness, low dark current, high speed and low noise. These features make SiC the best available material for visible blind semiconductor UV detectors.
The SiC detectors can be permanently operated at up to 170°C (338°F). The temperature coefficient of signal (responsivity) is also low, < 0,1%/K. Because of the low noise (dark current in the fA range), very low UV radiation intensities can be measured reliably.
- UV broadband (UVA+UVB+UVC) quadrant photodiode
- Active area 4 x 1.4 mm², 30 µm pitch
- Designed for UV laser beam adjustment applications, autocollimators and other UV beam position detection applications

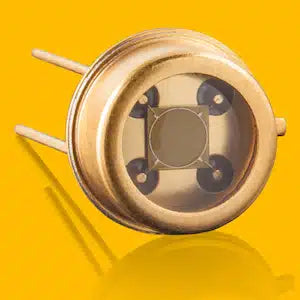

- TO5 hermetically sealed metal housing, short cap, common cathode
- 10 µW/cm² irradiation at 280 nm (peak responsivity) results a current of approx. 22 nA / pixel
- SiC chip with PTB reported high radiation hardness
