ZD Red (Ø 11 mm); 3-6 VDC

£250.00
Unit price per

Model and Description

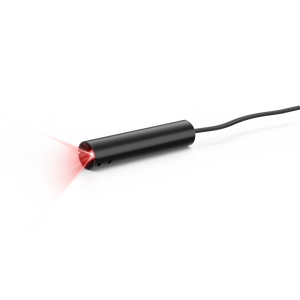

The ZD laser module can optionally project a line, point, or cross projection. It is often used as a positioning laser in the wood, stone, textile, tire and metal industries. With a diameter of only Ø11 mm, it can be used universally.

The ZD stands out with its excellent visibility even at a low output power. In addition, a supply voltage of 3-6 VDC opens the door to various interesting applications. Output power up to 15 mW with 635 nm red laser diodes

Dimensions: 52 x 11 mm
Wavelength: 635 nm (red)
Supply Voltage: 3 - 6 VDC
Protection class: IP40
Focus: Fixed focus
Application: OEM, Positioning
